sn2501 ic

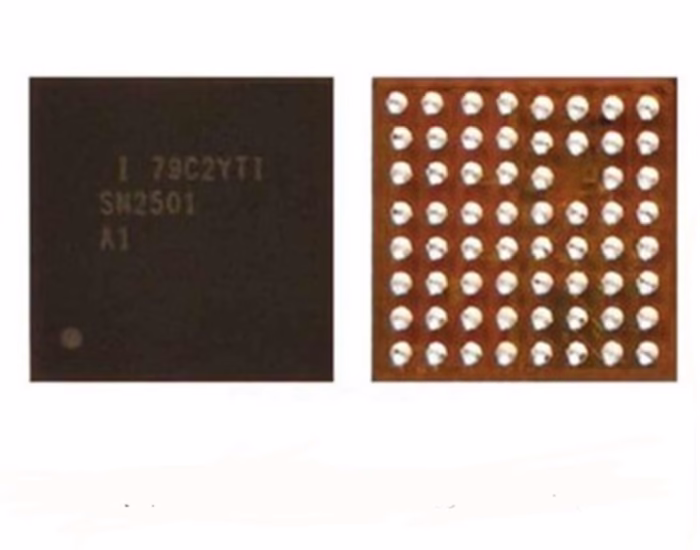

The SN2501 is the Tigris T1 USB charging IC chip used in the iPhone 8, iPhone 8 Plus, and iPhone X. The chip, also known as U3300 on the motherboard, is responsible for managing the device’s charging functions.
In Stock
Description
sn2501 ic
The SN2501 is the Tigris T1 USB charging IC chip used in the iPhone 8, iPhone 8 Plus, and iPhone X. The chip, also known as U3300 on the motherboard, is responsible for managing the device’s charging functions.
Functionality and purpose
- Controls USB charging: The SN2501 manages the charging process when a USB cable is connected, ensuring efficient and reliable power flow to the battery.
- Resolves charging issues: If an iPhone has charging problems (e.g., not charging, charging intermittently, or showing a charging icon but not gaining power), a faulty SN2501 is often the cause.
- Part of a larger system:Â The Tigris chip works in conjunction with other power management ICs on the iPhone’s logic board to regulate the device’s power functions.Â
How to identify a faulty SN2501
Technicians and repair specialists often diagnose a faulty SN2501 based on these symptoms:Â
- The iPhone is plugged in but does not charge.
- The battery indicator shows a charging state, but the battery percentage does not increase.
- The device suddenly dies or turns off despite showing a charge.
- The phone behaves erratically while charging.Â
Replacement process
Repairing or replacing the SN2501 is a complex, micro-soldering job that requires specialized equipment and expertise. It is not a repair recommended for DIY users. The process involves:Â
- Disassembling the iPhone to access the logic board.
- Locating the U3300/SN2501 chip.
- Using a heat gun to carefully remove the old chip.
- Preparing the contact pads for the new chip.
- Soldering the new SN2501 chip onto the board.
- Testing the device to confirm normal charging functionality.
