Required tools and equipment

• JCID Programmer: A V1SE or V1S Pro programmer is necessary to read and write Face ID data.
• JCID Face ID Dot Matrix Repair Board: An adapter board for the programmer that allows the Face ID data to be read and written.

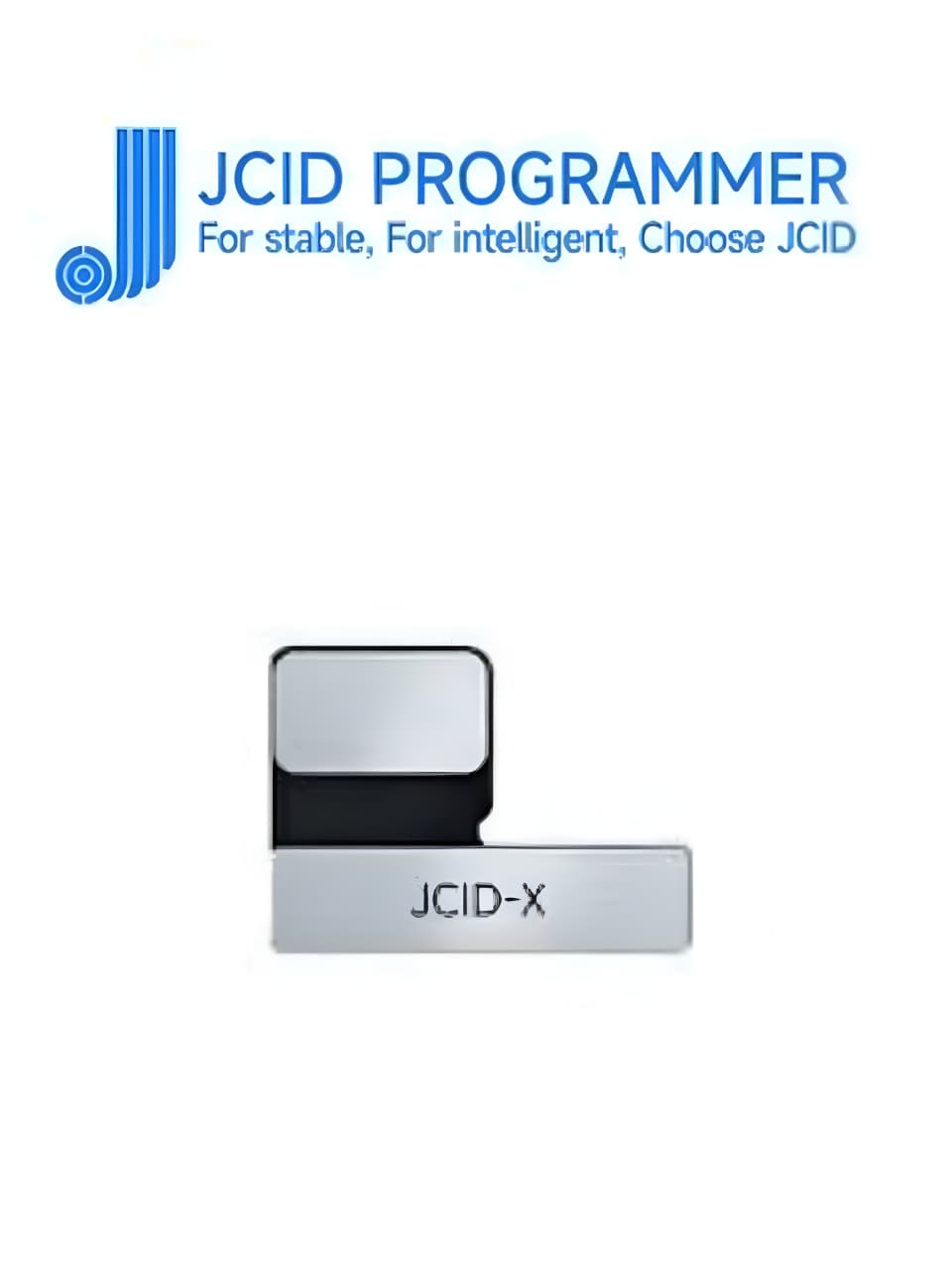

• JCID Tag On Face ID FPC Cable for iPhone X: This is the small flex cable that you will “tag on” to the original Face ID component.
• Standard phone repair tools: A pentalobe screwdriver, tri-point screwdriver, and other tools to safely open the iPhone X and remove the screen and front camera assembly.

The Face ID tag-on repair process

• First, disassemble the iPhone X and remove the screen and front camera assembly.
• Connect the JCID programmer to a power source and a computer running the JCID Repair software.
• Connect the original Face ID dot projector flex cable to the appropriate port on the JCID programmer’s adapter board.
• Use the software to read and back up the original Face ID data from the projector.

• Disconnect the original flex cable from the programmer.
• Connect the new JCID Face ID tag-on FPC cable to the programmer’s adapter board.
• In the JCID software, write the backed-up data onto the new tag-on cable. The software will confirm when the write is successful.

• Disconnect the new tag-on flex from the programmer.
• Carefully “tag on” the new FPC cable to the original Face ID dot projector flex cable. The cables are designed to connect to one another without soldering.
• Ensure the connection is secure.

• Reconnect the front camera assembly to the phone’s logic board, and reinstall the battery and screen.
• Power on the phone and check the Face ID function. It should now be working normally.

Advantages and limitations of this method

• No soldering: Avoids the difficult and risky process of soldering a new IC chip, which can cause damage to the sensitive Face ID components.
• Non-removal of optical components: This process does not require disassembly of the original TrueDepth camera module, which maintains factory alignment.
• Faster and easier: Significantly simplifies and accelerates the Face ID repair process, making it accessible to technicians with less experience.

• Not a universal fix: It cannot repair all Face ID issues, especially those caused by damage to the flood illuminator or if the original dot projector chip was fused.
• Hardware and software required: Requires a specific JCID programmer and adapter board, making it unsuitable for a DIY repair without the proper equipment.
• One-time programmable: The FPC cable can typically only be written to a limited number of times, so the process must be performed correctly.
